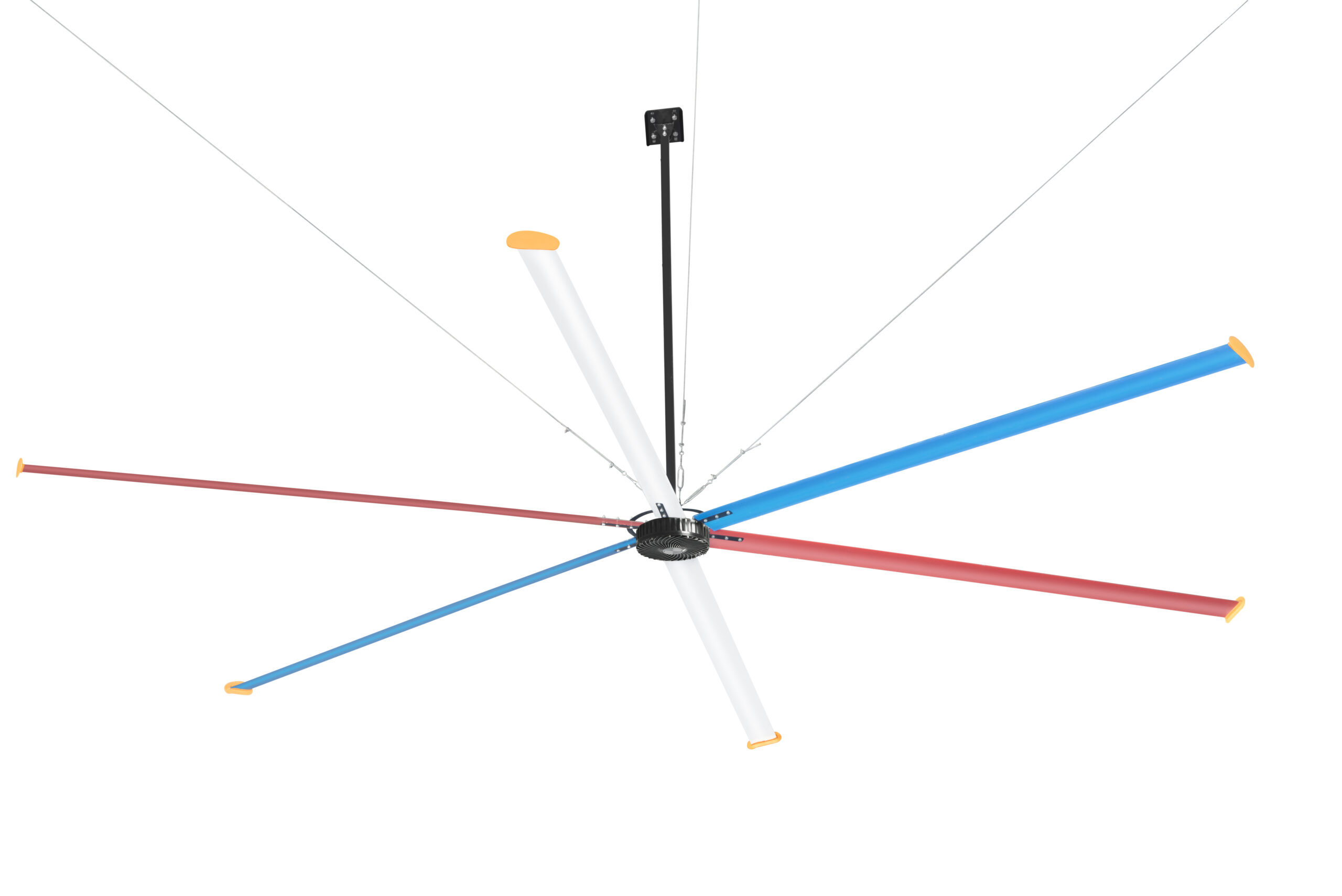

HVLS Ceiling Fan

PRODUCTS

High-Volume Airflow · Efficient Operation · Wide-Area Coverage

Voltage/Frequency: 220/380 V, 50/60 Hz

Fan Blades: 6 blades

Airflow Unit: m³/min

Model No.	Power	Fan Diameter	Fan Blades	Maximum Speed	Airflow	Effective Area
BG7300	1.5 kW	7.3 m / 24 ft	6 pcs	55 r/min	15,500 m³/min	700–800 m²
BG6100	1.2 kW	6.1 m / 20 ft	6 pcs	60 r/min	13,500 m³/min	600–700 m²
BG5500	1.2 kW	5.5 m / 18 ft	6 pcs	75 r/min	11,500 m³/min	500–600 m²
BG5000	0.9 kW	5.0 m / 16 ft	6 pcs	80 r/min	10,500 m³/min	400–500 m²
BG4200	0.5 kW	4.2 m / 14 ft	6 pcs	85 r/min	7,200 m³/min	300–400 m²
BG3600	0.5 kW	3.6 m / 12 ft	6 pcs	90 r/min	5,200 m³/min	200–300 m²
BG3000	0.5 kW	3.0 m / 10 ft	6 pcs	110 r/min	4,100 m³/min	100–200 m²

Standard Specifications:
All BG Series models operate at 220/380 V, 50/60 Hz and are equipped with six fan blades.
Airflow is measured in m³/min.
