QH Series Evaporative Air Cooler — Movable & Large Capacity
Flexible Cooling Solution · Large Water Tank · Wide Coverage
QH-M28 — Movable Cooling Fan
| Model No. | Voltage/ Frequency(V/Hz) |
Power (W) |
Airflow Distance(m) |
Effective Area(m²) |
Water Consumption(L/H) |
Water Capacity(L) |
Noise (dBA) |
Weight (kg) |
Product Size (mm) |
Loading Qty |
|---|---|---|---|---|---|---|---|---|---|---|
| QH-M28 | 220/50 | 650 | 25 | 100–200 | 3–6 | 200 | ≤55 | 50 | 820*930*1610 | 70PCS/40HQ |

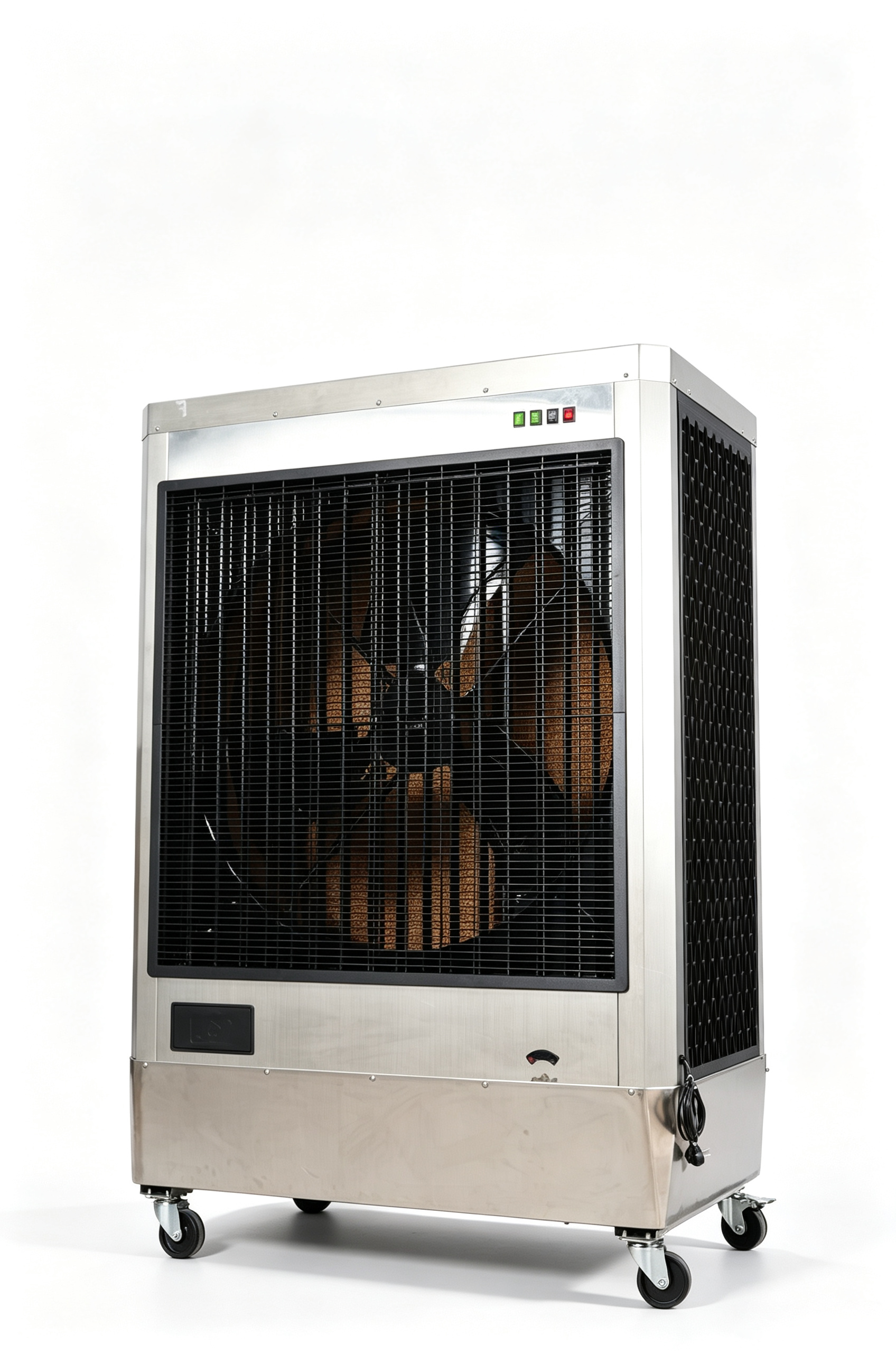

QH-LF90 — Large Capacity Air Cooler
| Model No. | Voltage/ Frequency(V/Hz) |
Power (kW) |
Airflow (m³/h) |
Effective Area(m²) |
Water Consumption(L/H) |
Water Capacity(L) |
Noise (dBA) |
Weight (kg) |
Product Size (mm) |
Loading Qty |
|---|---|---|---|---|---|---|---|---|---|---|
| QH-LF90 | 220/50 | 0.73 | 12,000 | 80–120 | 10–25 | 164 | ≤65 | 100 | 1215*725*1846 | 27PCS/40HQ |
Product Note:
QH-M28 is a movable evaporative cooling fan with 25m long airflow distance and 200L large water tank, ideal for spot cooling. QH-LF90 is a large-capacity evaporative air cooler delivering 12,000 m³/h airflow with 164L water tank, suitable for medium to large space cooling.
